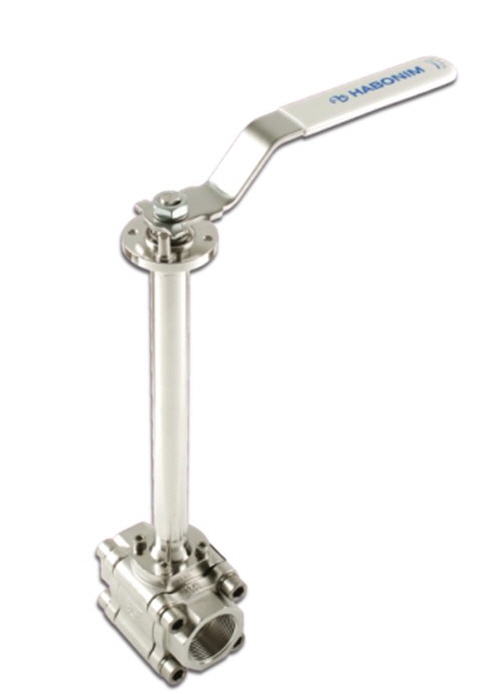

극저온밸브 Cryogenic Valve

페이지 정보

작성자 (주)동헌기업 조회661회 작성일 24-01-23 18:39

    • Cryogenic Valve

    • Size Range

      1/4"-8" (DN6-DN200)

    • Acting Type

      Hand or Gear operated, Pneumatic, Electric, Hydraulic, automatic operation

    • Connection

      Butt weld, Extended Butt weld, Screwed, Socket weld ( up to 2.5"), Flanged, Custom Ends and Piping Schedules

    • Press' Range

      Vacuum to 300 bar (4350 psig) Higher Pressure upon Request

    • Temp' Range

      -268.9°C to 230°C (-452.1°F to 446°F)

    • Body Material

      Stainless Steel, Brass ( Internals), Monel, Other Material upon request

    • Valve Option

    • Accessory

초저온 밸브
