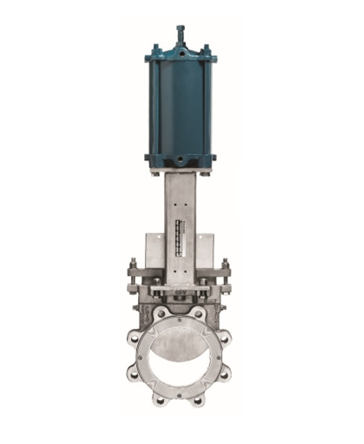

• • Pneumatic Knife Gate Valve

  • Size Range

    50A (2") ~ 600A (24") / 600A 이상 별도 문의

  • Valve Type

    Sliding Gate

  • Acting Type

    Double Acting & Spring Return

  • Connection

    ANSI, JIS, KS, DIN RF & LUG

  • Press' Range

    0 ~ 20 barg (150# ~ 300#)

  • Temp' Range

    -20 ~ 120℃ (Option : -20 ~ 250℃)

  • Body Material

    SCPH2, SCS13 ~ 14 (A351 CF8 ~ CF8M)

  • Seat Material

    PTFE, RTFE, METAL

  • Operating Time

    1 ~ 30sec ±10% (Air Supply 5 barg)

  • Supply Air / Power

    3 ~ 7 barg

  • Valve Option

    Cleaning

    High Temperature

  • Accessory

    Solenoid Valve

    Limit Switch

    Manual Handle

    Positioner

    Air Regulator

    Speed Controller
