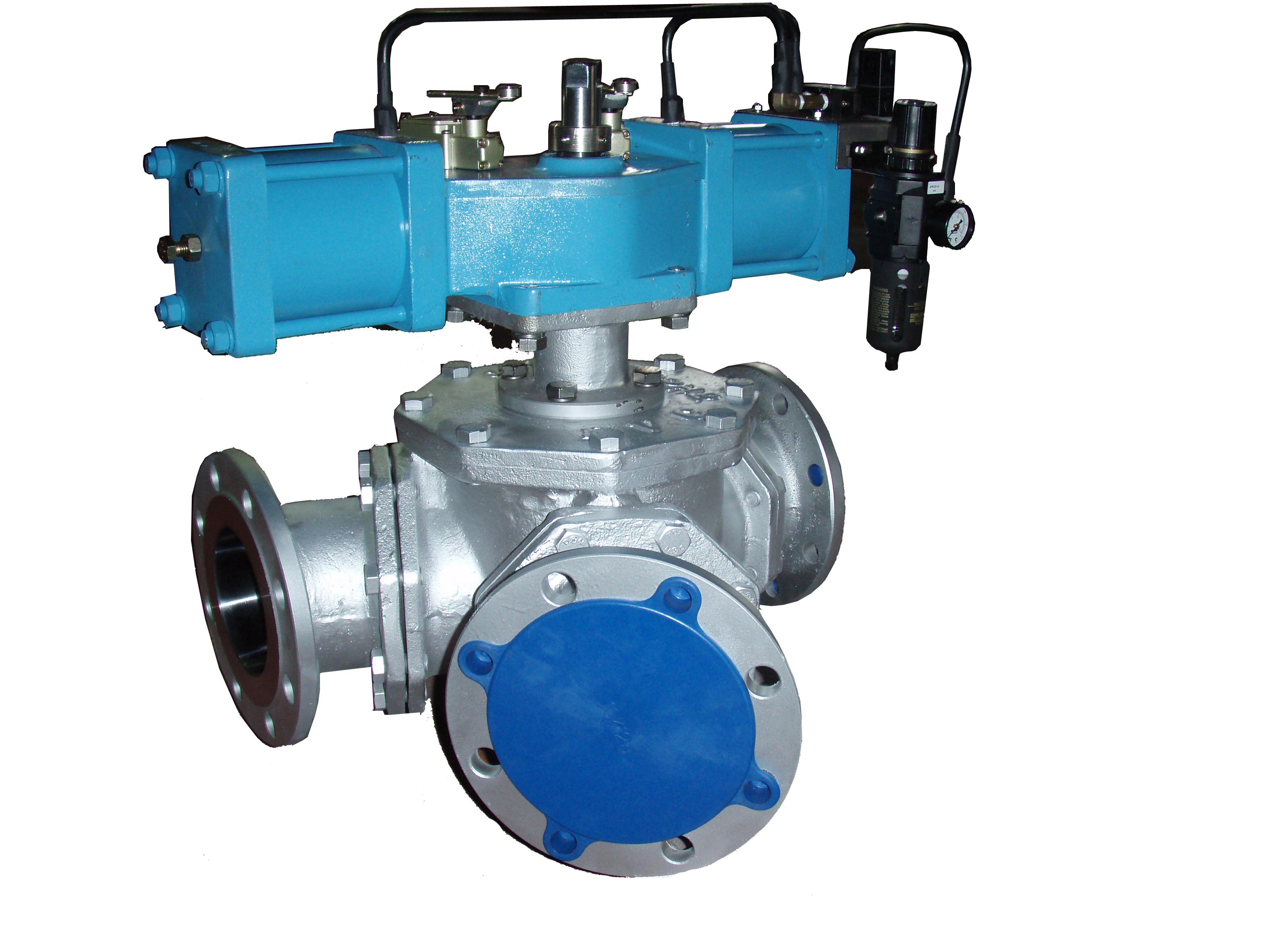

3웨이 볼 밸브 Pneumatic Y-Type 3-Way Ball Valve (Flange Type)

페이지 정보

작성자 (주)동헌기업 조회224회 작성일 24-03-27 15:10

    • Pneumatic Y-Type 3-Way Ball Valve (Flange Type)

    • Size Range

      50A (2") ~ 300A (12")

    • Valve Type

      Floating Type

    • Acting Type

      Double Acting & Spring Return

    • Connection

      ANSI, JIS, KS Flange

    • Press' Range

      0 ~ 10 barg

    • Temp' Range

      -20 ~ 120℃

    • Body Material

      SCS13 ~ 19 (A351 CF8 ~ CF3M)

    • Seat Material

      PTFE, RTFE

    • Operating Time

      0.5 ~ 20sec ±10% (Air Supply 5 barg)

    • Supply Air / Power

      4 ~ 7 barg (5 ~ 6 barg 권장)

    • Valve Option

      Cleaning

    • Accessory

      Solenoid Valve

      Limit Switch

      Manual Handle

      Air Regulator

      Speed Controller

 공압 Y타입 3웨이 볼 밸브 (Flange)
