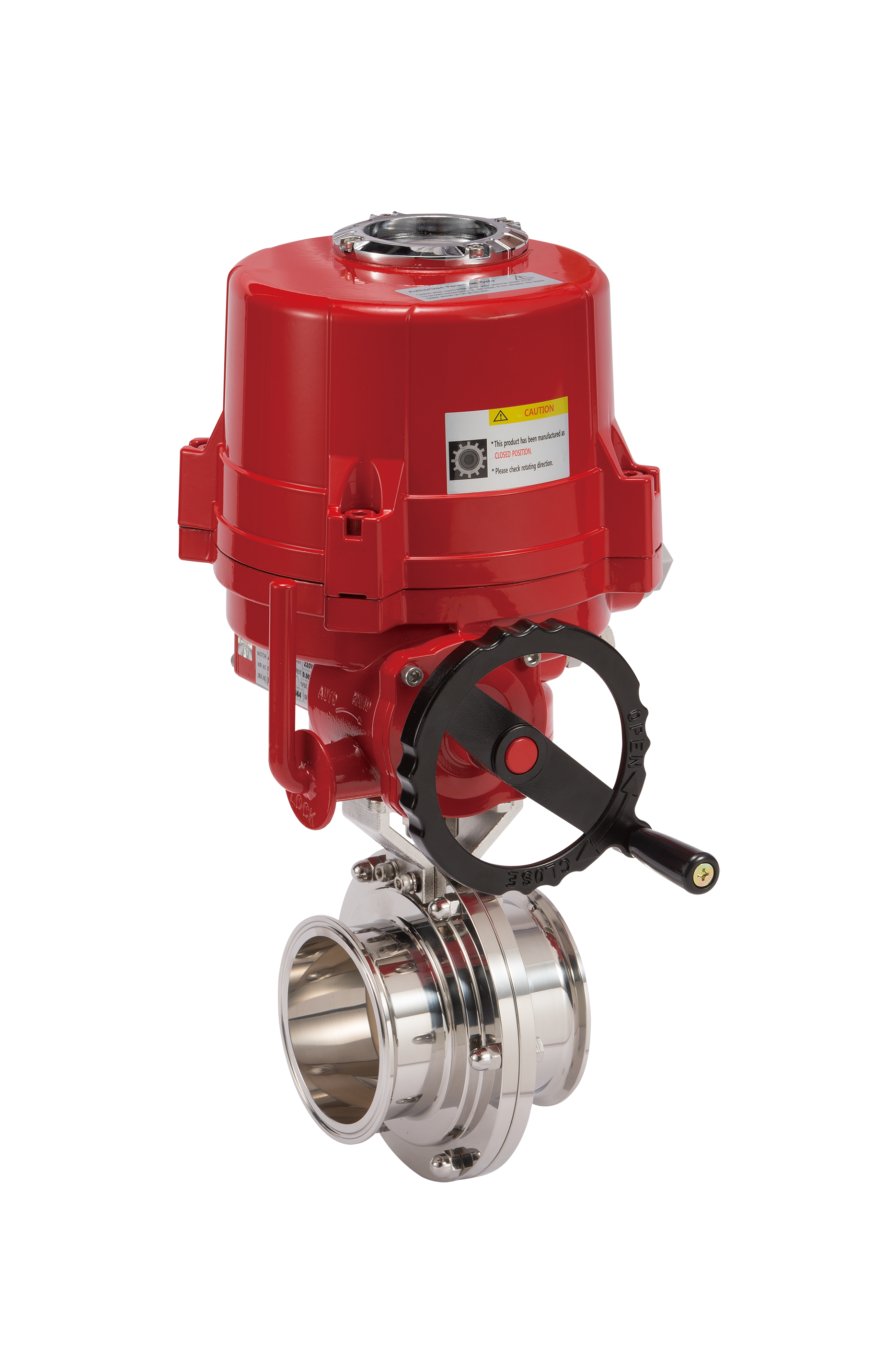

• • Electric Motor Sanitary Butterfly Valve

  • Size Range

    1S (1") ~ 4S (4")

  • Valve Type

    Concentric Disc Type

  • Acting Type

    Motor Operating On-Off or Control

  • Connection

    Sanitary Clamp, Welding, Union (ISO, ASME)

  • Press' Range

    0 ~ 10 barg (0 ~ 145 psig)

  • Temp' Range

    -10 ~ 120℃

  • Body Material

    SCS13 ~ 19 (A351 CF8 ~ CF3M) / MP, EP

  • Seat Material

    EPDM, NBR, VITON, SILICON

  • Operating Time

    3 ~ 30sec ±10% (DC24V 10% Up)

  • Supply Air / Power

    1 x AC110~220V, 3 x 380-440V 50/60Hz, DC24V

  • Valve Option

    Cleaning

    Polishing

  • Accessory

    Local Control

    Built in Battery

    Acting Control

    Output Signal

    Exp'Proof
