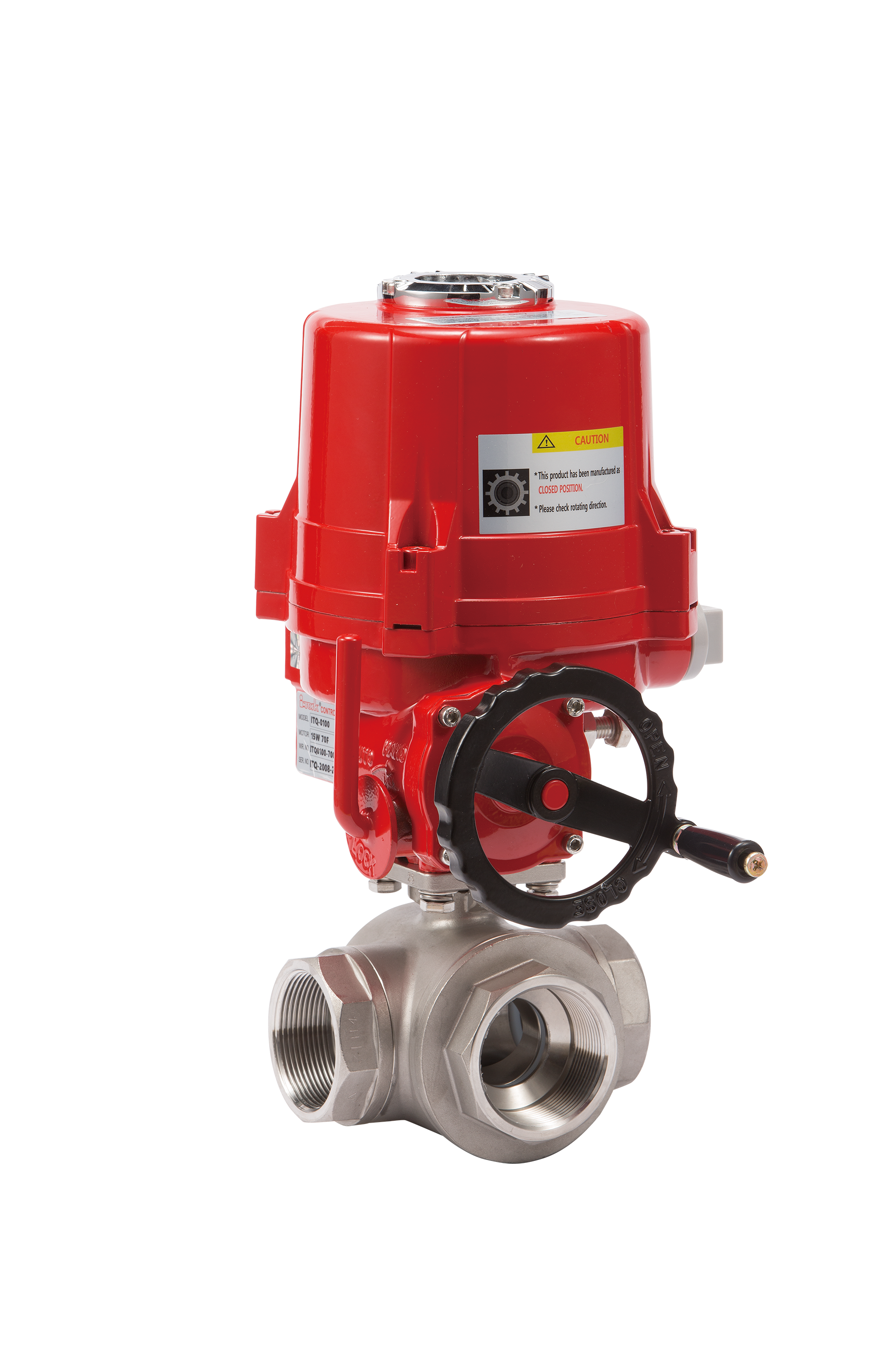

• • Electric Motor 3-Way Ball Valve (Screw Type)

  • Size Range

    15A (1/2") ~ 50A (2")

  • Valve Type

    Floating Type (T or L-Port Type)

  • Acting Type

    Motor Operating On-Off or Control

  • Connection

    Female PT, NPT (Standard : PT)

  • Press' Range

    0 ~ 63 barg (Option : -1 ~ 200 barg)

  • Temp' Range

    -20 ~ 120℃ (Option : -196 ~ 450℃)

  • Body Material

    SCS13, SCS14 (A351 CF8, CF8M)

  • Seat Material

    PTFE, RTFE

  • Operating Time

    3 ~ 20sec ±10% (DC24V 10% Up)

  • Supply Air / Power

    1 x AC110~220V, 3 x 380-440V 50/60Hz, DC24V

  • Valve Option

    Cleaning

    High Pressure

    High Temperature

  • Accessory

    Local Control

    Built in Battery

    Acting Control

    Output Signal

    Exp'Proof
