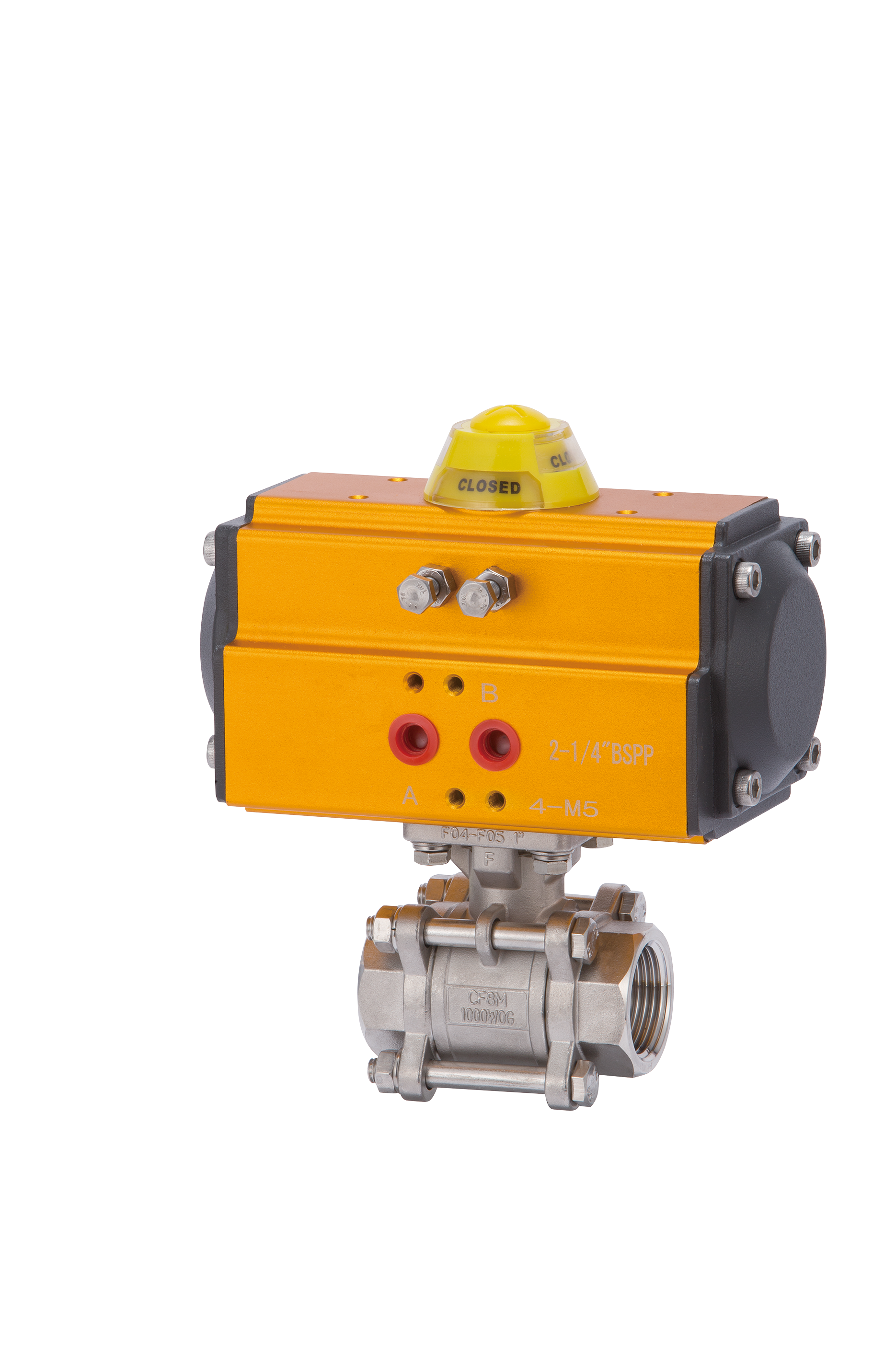

• • Pneumatic 2-Way Ball Valve (Screw Type)

  • Size Range

    08A (1/4") ~ 100A (4")

  • Valve Type

    Floating Type (1 or 3-Piece)

  • Acting Type

    Double Acting & Spring Return

  • Connection

    Female PT, NPT (Standard : PT)

  • Press' Range

    0 ~ 63 barg (Option : -1 ~ 400 barg)

  • Temp' Range

    -20 ~ 120℃ (Option : -196 ~ 450℃)

  • Body Material

    SCS13, SCS14 (A351 CF8, CF8M)

  • Seat Material

    PTFE, RTFE, PEEK, METAL etc.

  • Operating Time

    0.3 ~ 7sec ±10% (Air Supply 5 barg)

  • Supply Air / Power

    4 ~ 7 barg (5 ~ 6 barg 권장)

  • Valve Option

    Cleaning

    High Pressure

    High Temperature

  • Accessory

    Solenoid Valve

    Limit Switch

    Manual Handle

    Positioner

    Air Regulator

    Speed Controller
