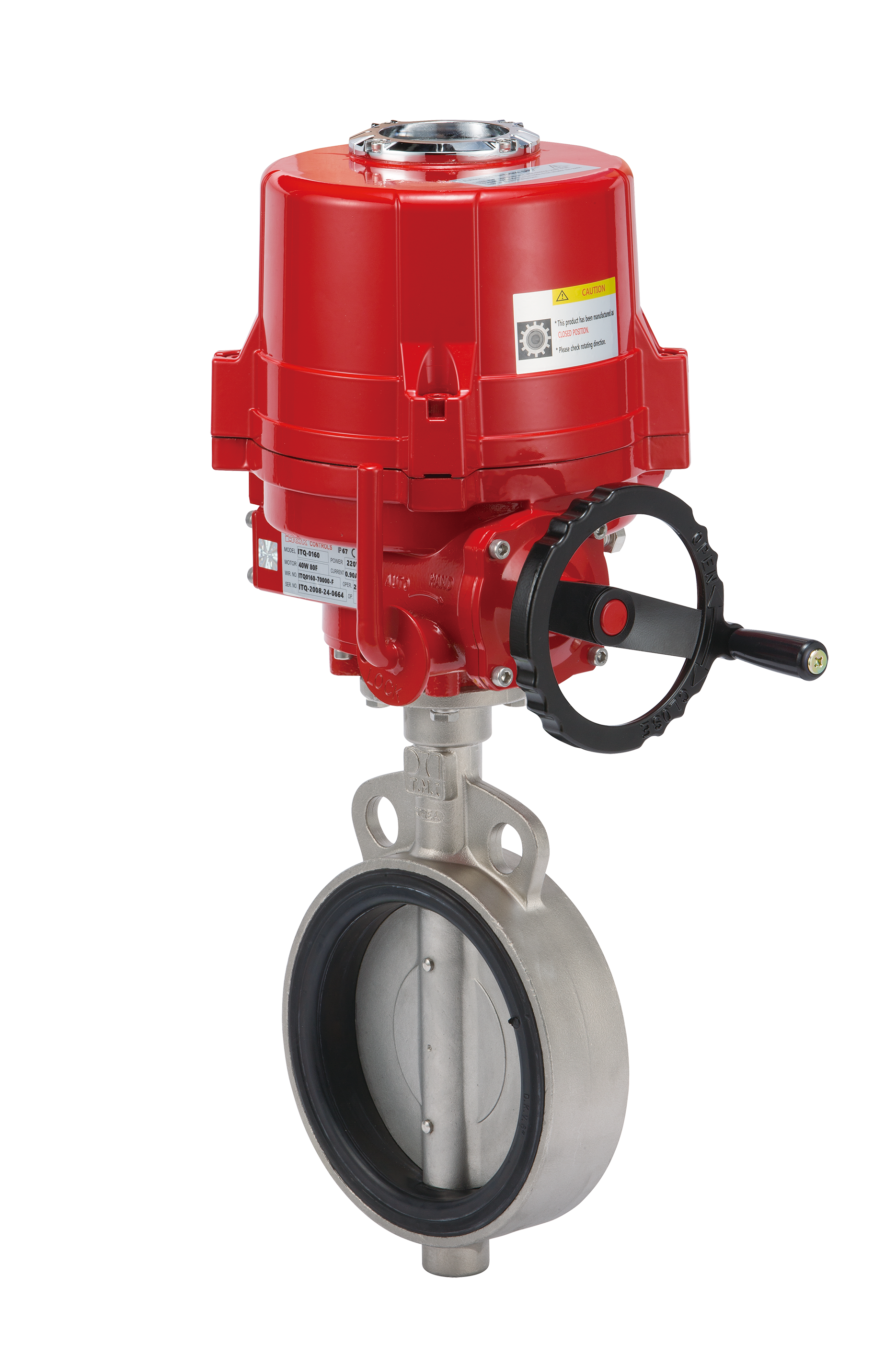

버터플라이 밸브 Electric Motor Butterfly Valve (Wafer Type)

페이지 정보

작성자 (주)동헌기업 조회252회 작성일 24-03-27 15:21

    • Electric Motor Butterfly Valve (Wafer Type)

    • Size Range

      40A (1,1/2") ~ 1200A (48")

    • Valve Type

      Concentric Disc Type

    • Acting Type

      Motor Operating On-Off or Control

    • Connection

      ANSI, JIS, KS, DIN Wafer

    • Press' Range

      0 ~ 20 barg

    • Temp' Range

      -10 ~ 120℃

    • Body Material

      FC200, SCPH2, SCS13 ~ 19 (A351 CF8 ~ CF3M)

    • Seat Material

      EPDM, VITON, NBR, PTFE

    • Operating Time

      7 ~ 240sec ±10% (DC24V 10% Up)

    • Supply Air / Power

      1 x AC110~220V, 3 x 380-440V 50/60Hz, DC24V

    • Valve Option

      Cleaning

    • Accessory

      Local Control

      Built in Battery

      Acting Control

      Output Signal

      Exp'Proof

전동 버터플라이 밸브 (Wafer)
