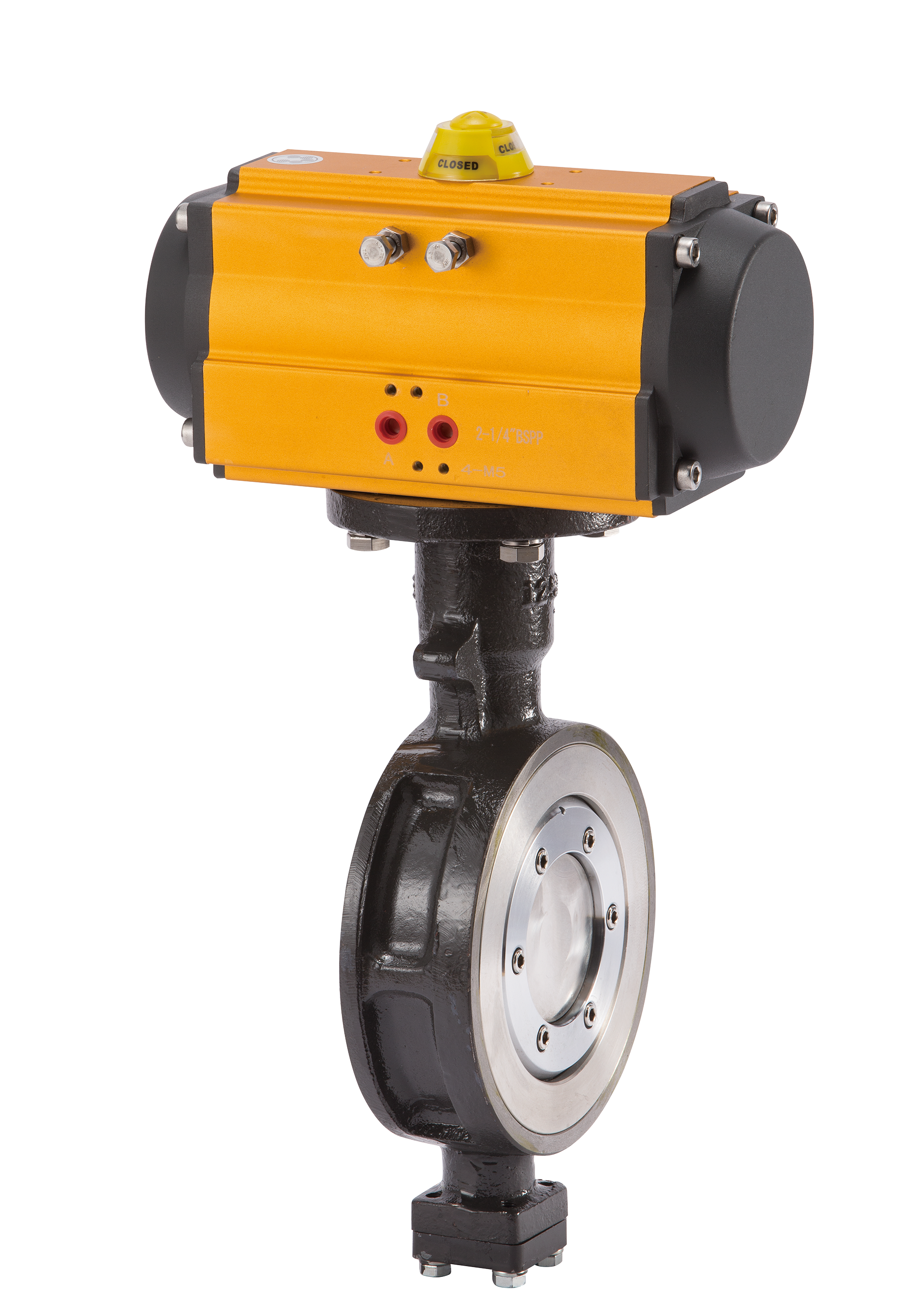

• • Pneumatic H/P Butterfly Valve (Wafer Type)

  • Size Range

    25A (1") ~ 1200A (48") / 1200A 이상 별도 문의

  • Valve Type

    Double Offset, Triple Offset

  • Acting Type

    Double Acting & Spring Return / 2-Stage

  • Connection

    ANSI, JIS, KS, DIN Wafer

  • Press' Range

    0 ~ 20 barg (Option : -1 ~ 200 barg)

  • Temp' Range

    -20 ~ 180℃ (Option : Max 450℃)

  • Body Material

    FCD, SCPH2, SCS13 ~ 19 (A351 CF8 ~ CF3M)

  • Seat Material

    PTFE, RTFE, PEEK, METAL etc.

  • Operating Time

    0.3 ~ 30sec ±10% (Air Supply 5 barg)

  • Supply Air / Power

    4 ~ 7 barg (5 ~ 6 barg 권장)

  • Valve Option

    Cleaning

    High Pressure

    High Temperature

  • Accessory

    Solenoid Valve

    Limit Switch

    Manual Handle

    Positioner

    Air Regulator

    Speed Controller
