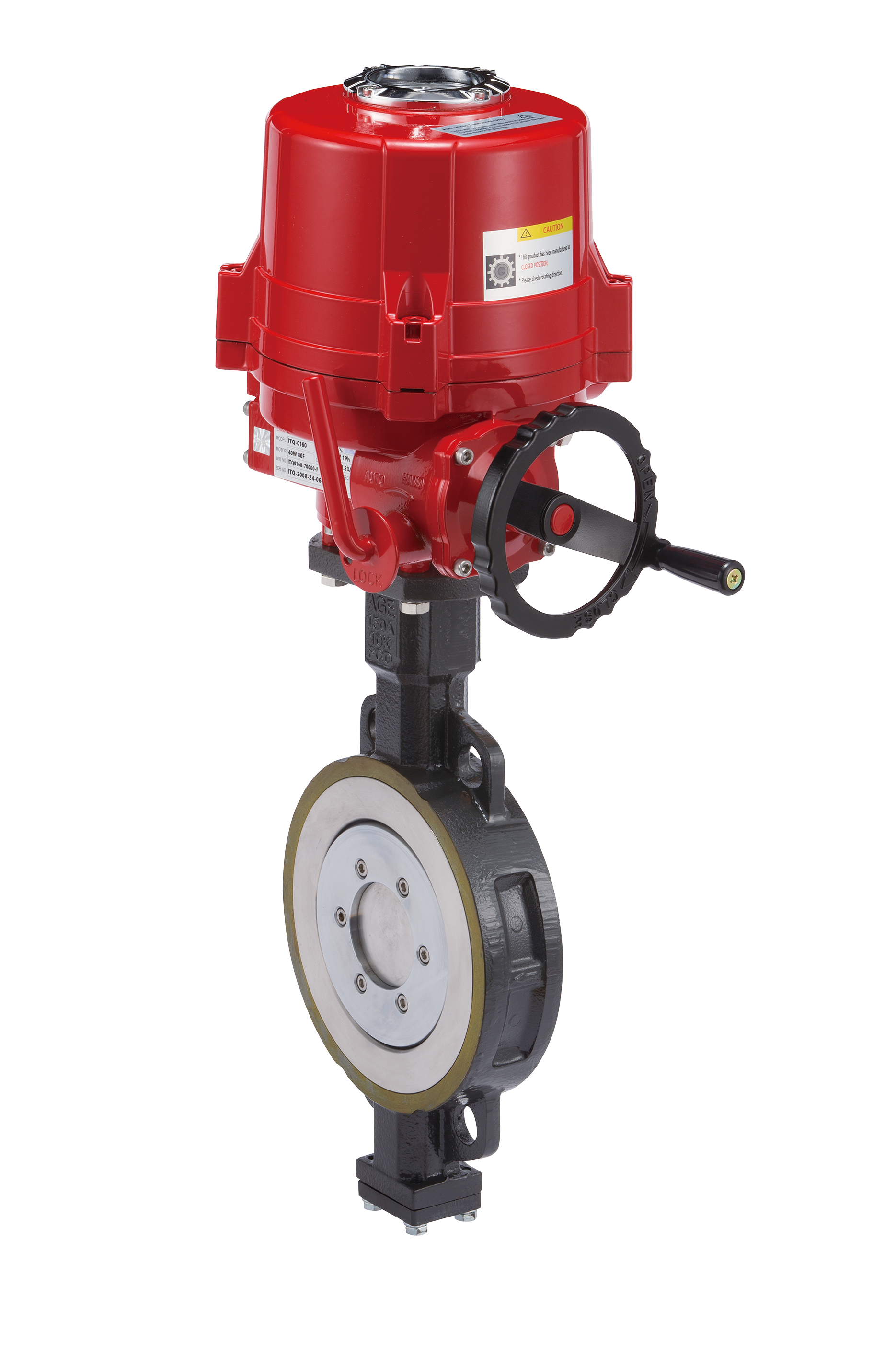

• • Electric Motor H/P Butterfly Valve (Wafer Type)

  • Size Range

    25A (1") ~ 1200A (48") / 1200A 이상 별도 문의

  • Valve Type

    Double Offset, Triple Offset

  • Acting Type

    Motor Operating On-Off or Control

  • Connection

    ANSI, JIS, KS, DIN Wafer

  • Press' Range

    0 ~ 20 barg (Option : Max 200 barg)

  • Temp' Range

    -20 ~ 180℃ (Option : Max 450℃)

  • Body Material

    FCD, SCPH2, SCS13 ~ 19 (A351 CF8 ~ CF3M)

  • Seat Material

    PTFE, RTFE, PEEK, METAL etc.

  • Operating Time

    5 ~ 240sec ±10% (DC24V 10% Up)

  • Supply Air / Power

    1 x AC110~220V, 3 x 380-440V 50/60Hz, DC24V

  • Valve Option

    Cleaning

    High Pressure

    High Temperature

  • Accessory

    Local Control

    Built in Battery

    Acting Control

    Output Signal

    Exp'Proof
