탱크바텀밸브 Electric Motor Tank Bottom Ball Valve (Flange Type)

페이지 정보

작성자 (주)동헌기업 조회215회 작성일 24-03-28 15:33

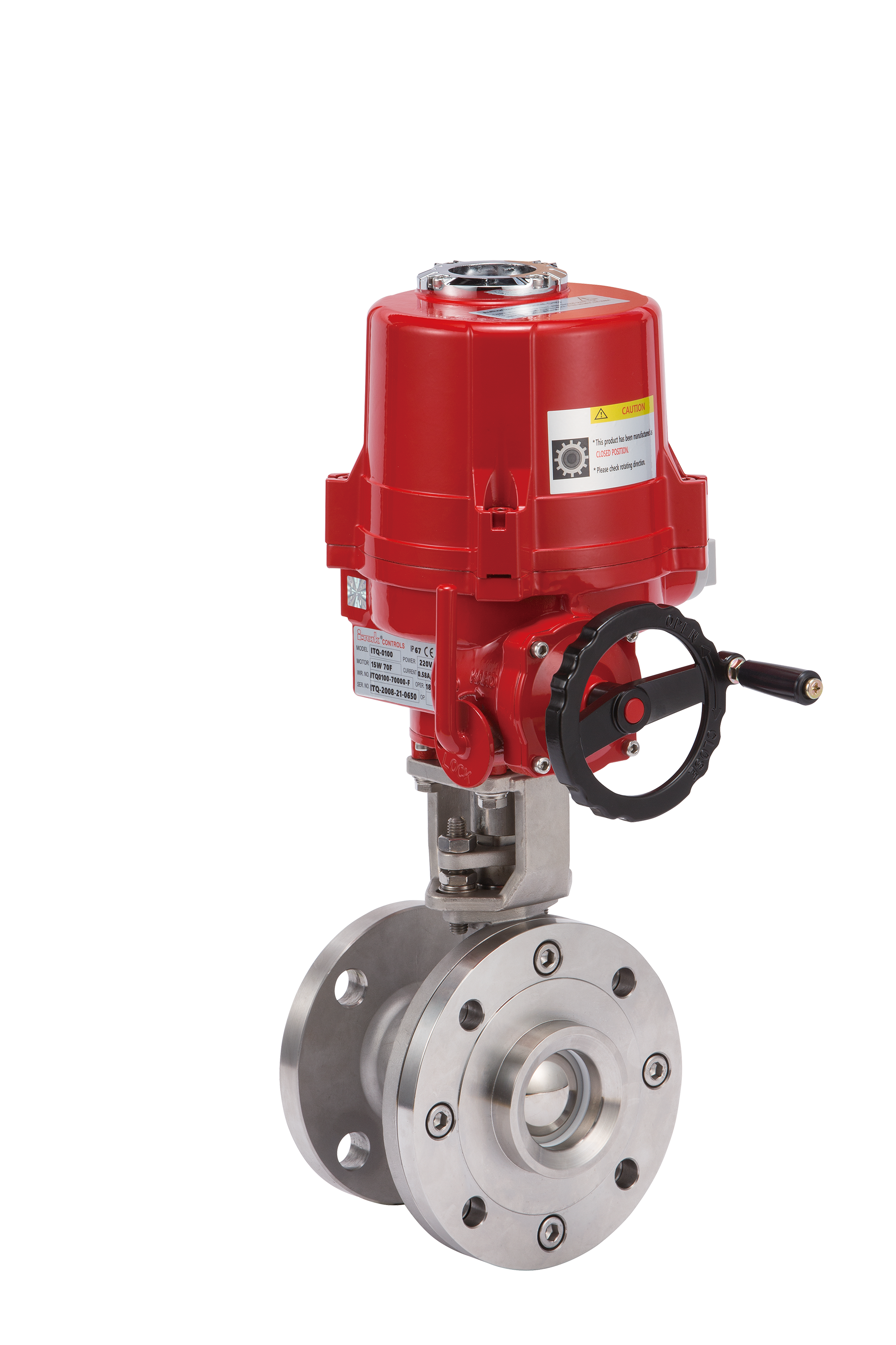

    • Electric Motor Tank Bottom Ball Valve (Flange Type)

    • Size Range

      25A (1") ~ 200A (8")

    • Valve Type

      2-Piece Tank Bottom (Pad Flange Type)

    • Acting Type

      Motor Operating On-Off or Control

    • Connection

      ANSI, JIS, KS Flange

    • Press' Range

      0 ~ 10 barg (150#)

    • Temp' Range

      -20 ~ 120℃

    • Body Material

      SCS13 ~ 19 (A351 CF8 ~ CF3M)

    • Seat Material

      PTFE, RTFE

    • Operating Time

      7 ~ 90sec ±10% (DC24V 10% Up)

    • Supply Air / Power

      1 x AC110~220V, 3 x 380-440V 50/60Hz, DC24V

    • Valve Option

      Cleaning

      High Temperature

      Pad Flange

    • Accessory

      Local Control

      Built in Battery

      Acting Control

      Output Signal

      Exp'Proof

 전동 탱크바텀 볼 밸브
