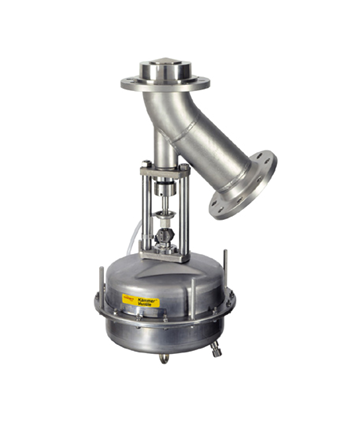

• • Pneumatic Tank Bottom Flush Valve

  • Size Range

    25A (1") ~ 200A (8") / 200A 이상 별도 문의

  • Valve Type

    Upper Type or Lower Type

  • Acting Type

    Double Acting & Spring Return

  • Connection

    ANSI, JIS, KS, DIN Flange

  • Press' Range

    0 ~ 40 barg (150# ~ 600#)

  • Temp' Range

    -20 ~ 120℃ (Option : -20℃ ~ 350℃)

  • Body Material

    SCS13 ~ 14 (A351 CF8 ~ CF8M)

  • Seat Material

    PTFE, RTFE, PEEK, METAL etc.

  • Operating Time

    0.3 ~ 20sec ±10% (Air Supply 5 barg)

  • Supply Air / Power

    3 ~ 7 barg

  • Valve Option

    Cleaning

    High Pressure

    High Temperature

  • Accessory

    Solenoid Valve

    Limit Switch

    Manual Handle

    Positioner

    Air Regulator

    Speed Controller
