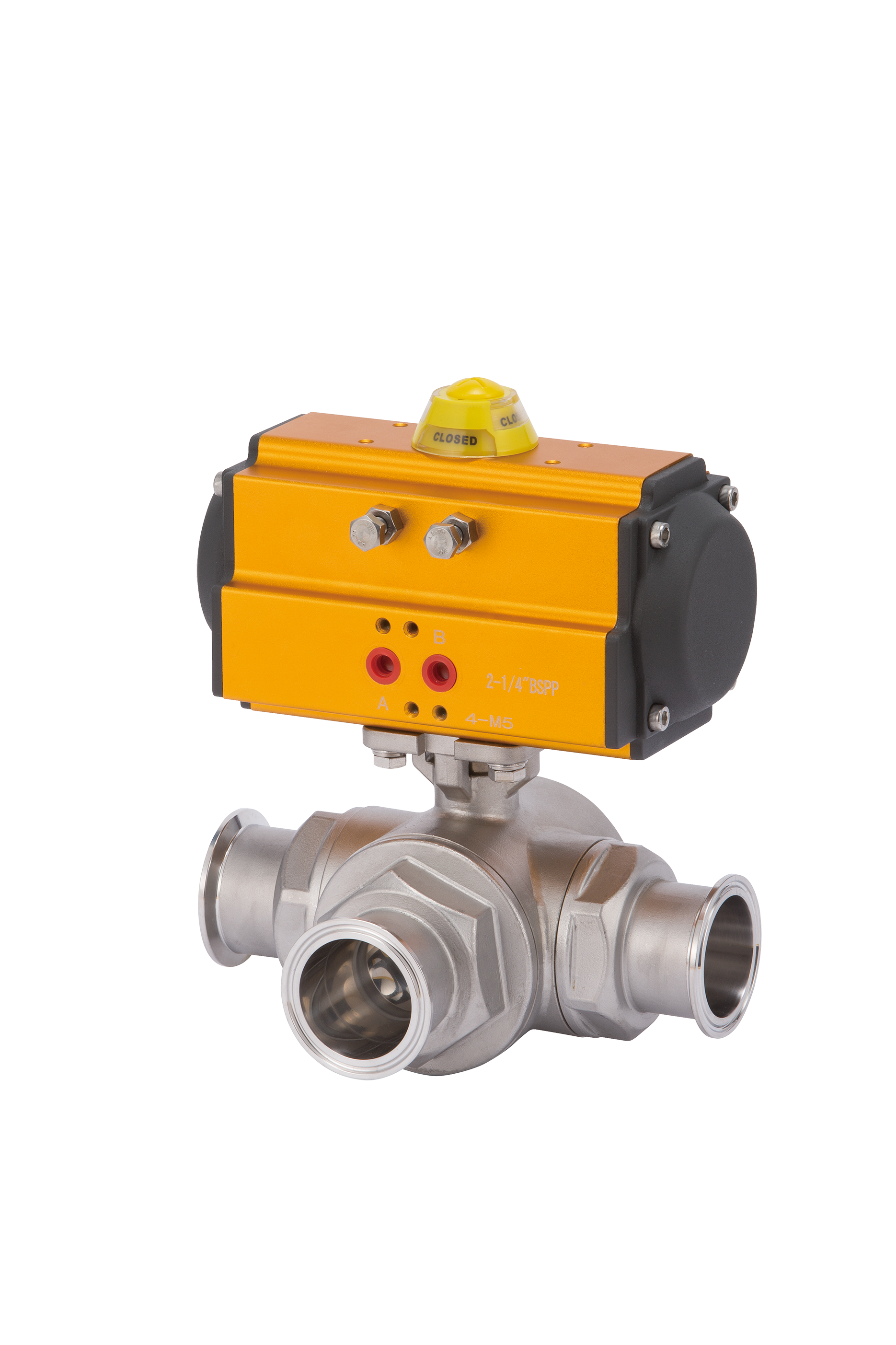

쎄니타리 3웨이 볼 밸브 Pneumatic Sanitary 3-Way Ball Valve (Clamp Type)

페이지 정보

작성자 (주)동헌기업 조회227회 작성일 24-03-28 11:07

    • Pneumatic Sanitary 3-Way Ball Valve (Clamp Type)

    • Size Range

      0.5S (1/2") ~ 4S (4")

    • Valve Type

      3-Way or 4-Way, T-Port or L-Port

    • Acting Type

      Double Acting & Spring Return

    • Connection

      Sanitary Clamp, Welding, Union (ISO, ASME)

    • Press' Range

      0 ~ 63 barg (0 ~ 1000 psig)

    • Temp' Range

      -20 ~ 120℃ (Option : Max 180℃)

    • Body Material

      SCS13 ~ 19 (A351 CF8 ~ CF3M) / MP, EP

    • Seat Material

      PTFE, RTFE

    • Operating Time

      0.2 ~ 10sec ±10% (Air Supply 5 barg)

    • Supply Air / Power

      4 ~ 7 barg (5 ~ 6 barg 권장)

    • Valve Option

      Cleaning

      Polishing

    • Accessory

      Solenoid Valve

      Limit Switch

      Manual Handle

      Positioner

      Air Regulator

      Speed Controller

공압 위생 3웨이 볼 밸브
