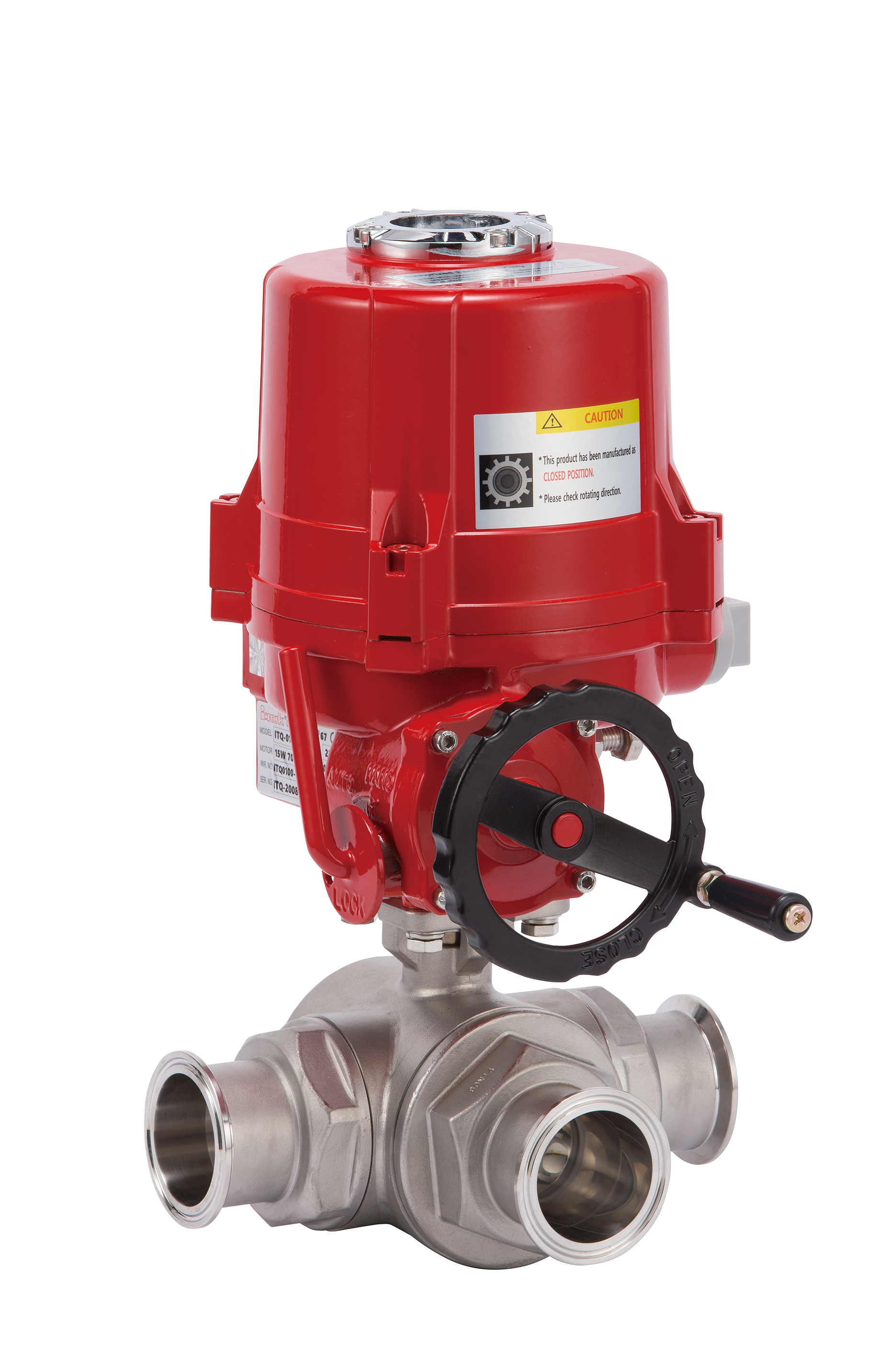

• • Electric Motor Sanitary 3-Way Ball Valve

  • Size Range

    0.5S (1/2") ~ 4S (4")

  • Valve Type

    3-Way, T-Port or L-Port

  • Acting Type

    Motor Operating On-Off or Control

  • Connection

    Sanitary Clamp, Welding, Union (ISO, ASME)

  • Press' Range

    0 ~ 63 barg (0 ~ 1000 psig)

  • Temp' Range

    -20 ~ 120℃ (Option : Max 180℃)

  • Body Material

    SCS13 ~ 19 (A351 CF8 ~ CF3M) / MP, EP

  • Seat Material

    PTFE, RTFE

  • Operating Time

    3 ~ 45sec ±10% (DC24V 10% Up)

  • Supply Air / Power

    1 x AC110~220V, 3 x 380-440V 50/60Hz, DC24V

  • Valve Option

    Cleaning

    Polishing

  • Accessory

    Local Control

    Built in Battery

    Acting Control

    Output Signal

    Exp'Proof
