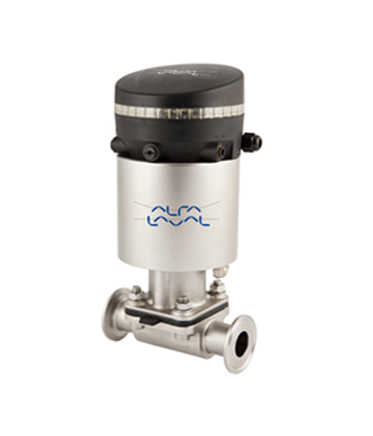

다이아프램 밸브 Pneumatic Sanitary Diaphragm Valve (Clamp Type)

페이지 정보

작성자 (주)동헌기업 조회216회 작성일 24-03-28 10:51

    • Pneumatic Sanitary Diaphragm Valve (Clamp Type)

    • Size Range

      0.5S ~ 4S

    • Valve Type

      2-Way or T-Valve (3-Way)

    • Acting Type

      Double Acting & Spring Return

    • Connection

      Sanitary Clamp, Welding, Union (ISO, ASME)

    • Press' Range

      0 ~ 10 barg (0 ~ 145 psig)

    • Temp' Range

      -10 ~ 140℃

    • Body Material

      SCS13 ~ 19 (A351 CF8 ~ CF3M) / MP, EP

    • Seat Material

      EPDM, TEFLON

    • Operating Time

      0.2 ~ 10sec ±10% (Air Supply 5 barg)

    • Supply Air / Power

      3 ~ 7 barg

    • Valve Option

      Cleaning

      Polishing

    • Accessory

      Solenoid Valve

      Limit Switch

      Manual Handle

      Positioner

      Air Regulator

공압 위생 (Sanitary) 다이아프램 밸브


* Accessory : Silencer 추가 가능
