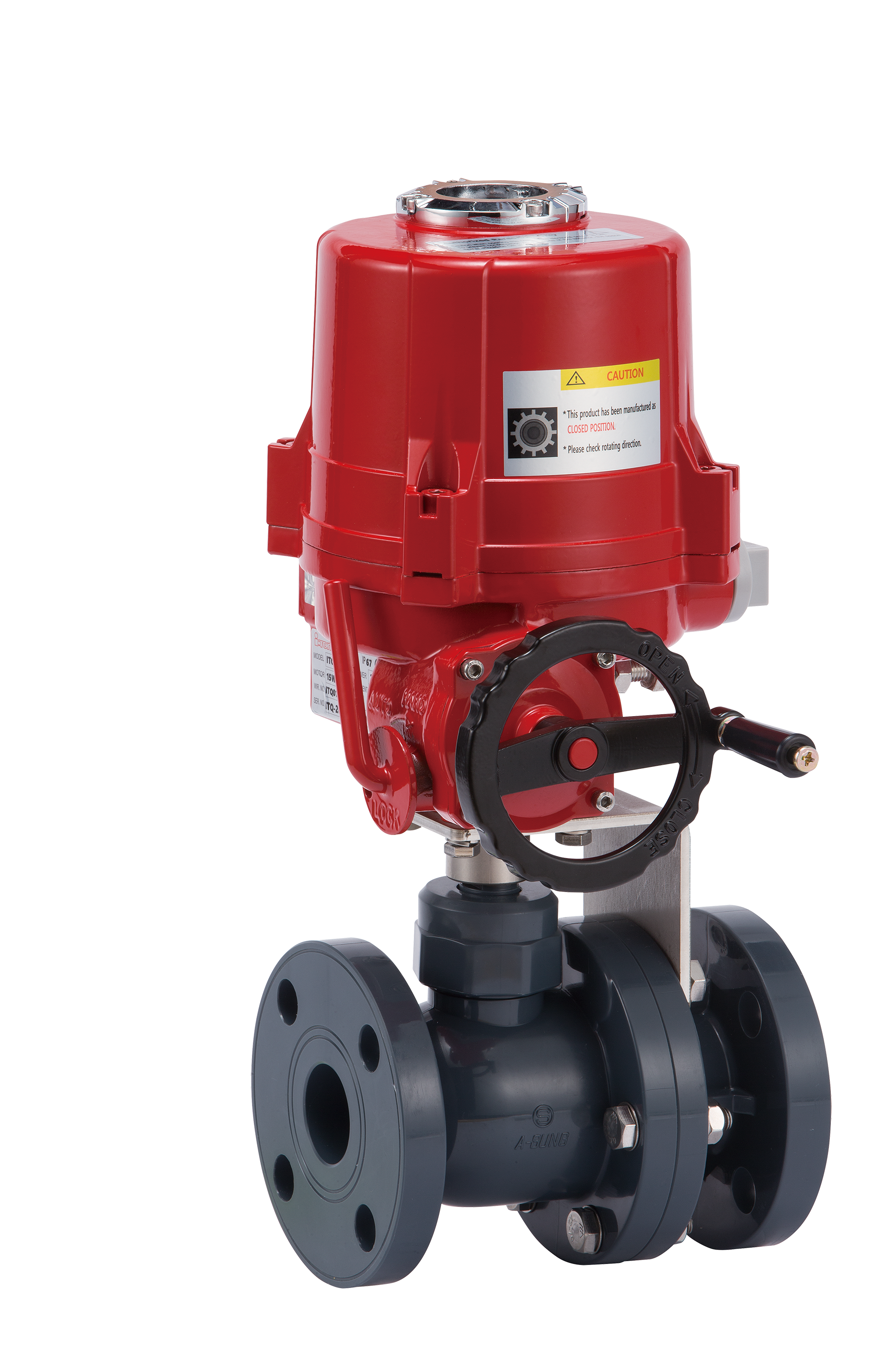

• • Electric Motor PP/PVC Ball Valve

  • Size Range

    15A (1/2") ~ 150A (6")

  • Valve Type

    Floating Type (2-Way)

  • Acting Type

    Motor Operating On-Off or Control

  • Connection

    ANSI, JIS, KS, DIN Flange

  • Press' Range

    0 ~ 10 barg (150#)

  • Temp' Range

    -10 ~ 90℃ (PVDF 120℃)

  • Body Material

    PP, PVC, C-PVC, PVDF

  • Seat Material

    PTFE

  • Operating Time

    3 ~ 30sec ±10% (DC24V 10% Up)

  • Supply Air / Power

    1 x AC110~220V, 3 x 380-440V 50/60Hz, DC24V

  • Valve Option

    Cleaning

  • Accessory

    Local Control

    Built in Battery

    Acting Control

    Output Signal

    Exp'Proof
